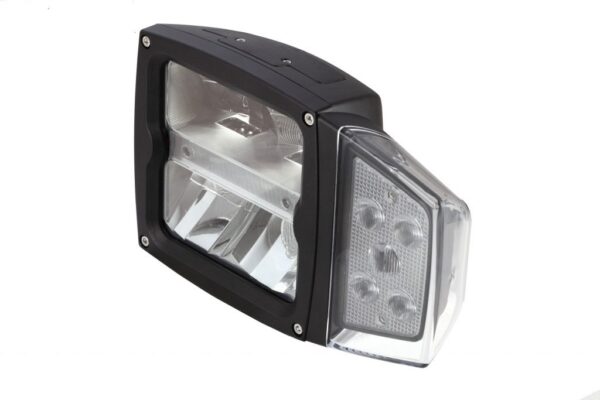

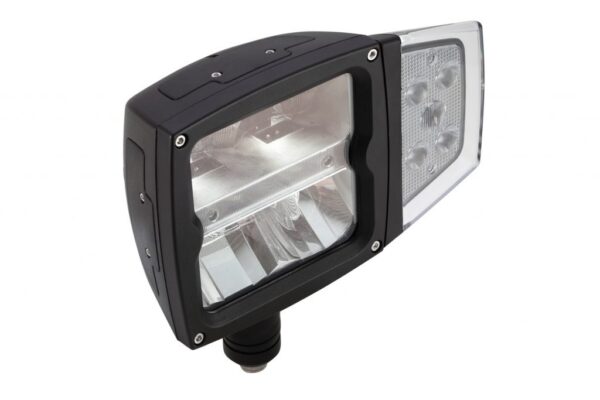

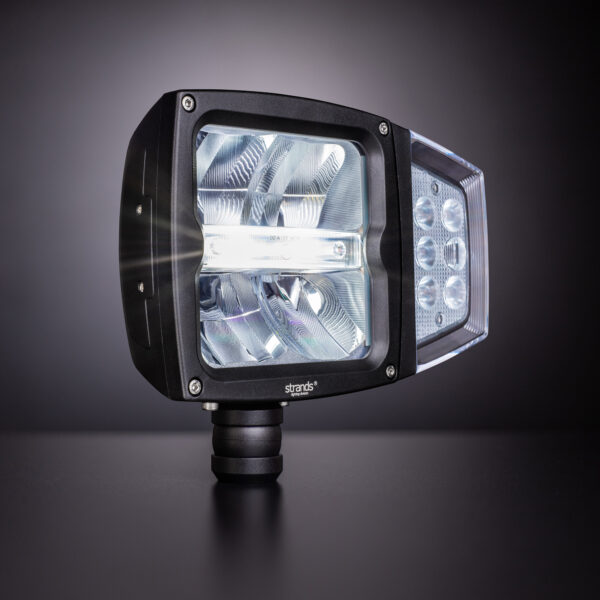

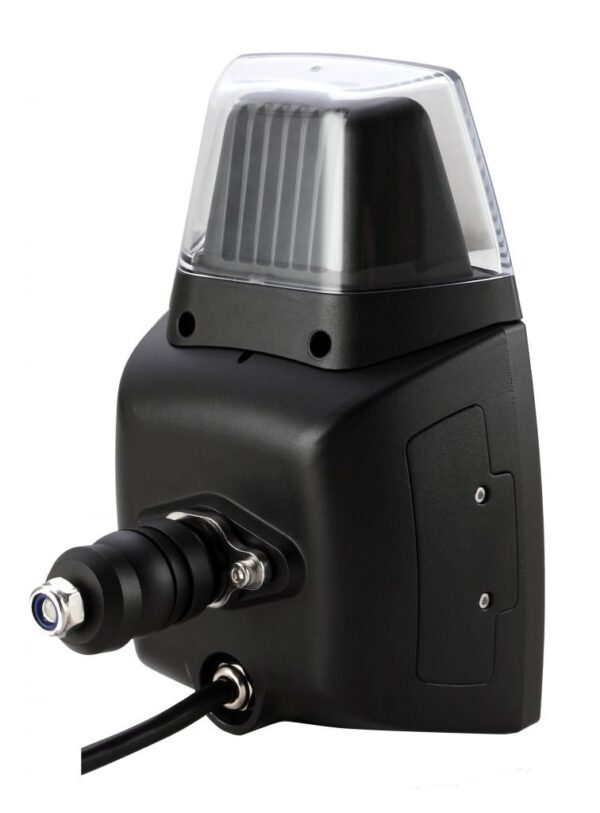

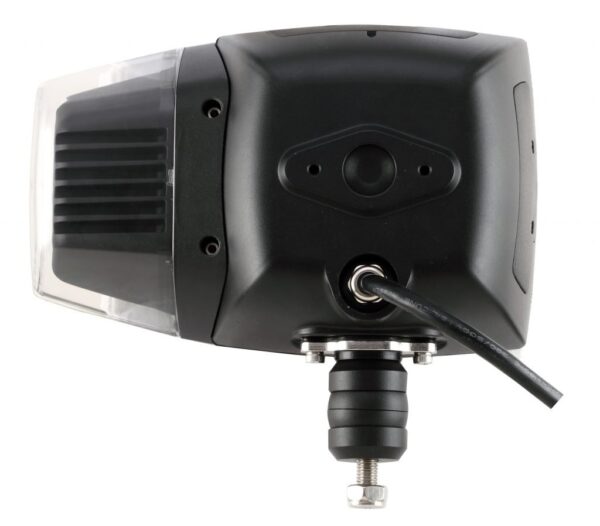

STRANDS PLOGLAMPA LED 4 FUNK. + VÄRMELINS,12-30V DC, 42W, IP68

Artikelnr: str-270710 Kategorier: , Lagerstatus: I lagerTillverkare: StrandsLägsta pris senaste 30 dagarna: 3095 kr

3095 kr Inklusive moms

Minus Minus

STRANDS PLOGLAMPA LED 4 FUNK. + VÄRMELINS,12-30V DC, 42W, IP68

En fullt E-godkänd ploglampa med värmelins.Ploglampan kommer med följande funktioner: Halvljus, helljus, positionsljus, blinkers och är fullt E-godkänd med referenstal 17,5.



Vikt 2300 g
Theoretical lumen

High beam:3600LMLow beam: 1800LMPark light :220LMIndicator :560LM
Varumärke

Widht master carton (mm)

280
Height master carton (mm)

305
Height including bracket (mm)

170
Type of lamp

LED
IP-class

68
Functions

High beamLow beamPark lightIndicatorHeated funtion
Weight (kg)

1.9
Height (mm)

150
E-approved

Yes
Beam pattern

Driving beam
Material lens

Tempered glass
1 LUX @ m

High beam: 280Low beam: 163
Cable length (mm)

300
Material housing/chassi

Aluminium
Weight master carton (kg)

10.6
Operating temperature

-40~+60 ° C
Positionsljus

Yes
EMC

ECE R10
Country of orgin

China
Taric code

85122010
Actual lumen

High beam:2900LMLow beam: 1500LMPark light :130LMIndicator :420LM
Colour lens

Clear
PCS LED´s

High beam: 4Low beam: 2Park light: 2Indicator: 8
Length inner box (mm)

285
Voltage (V DC)

10-30V DC
Material bracket

Stainless steel
Depth inner box (mm)

125
Theoretical effect (w) 24V

High beam:38WLow beam:20WPark light:1.5WIndicator:20WHeated lens:20W
ADR-approved

No
Artikelnummerstr-270710
